Description

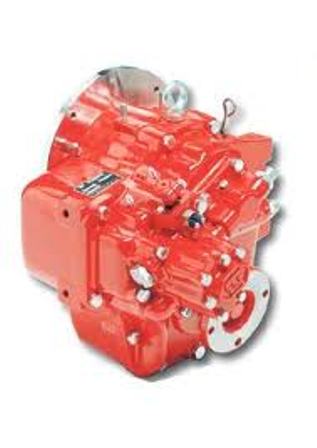

TM 170A marine gearbox is equipped with multiple-disc clutches hydraulically operated. Clutches and gears are properly constructed to transmit the full power, with the same ratio, both in forward and reverse running. A 10° down angle on output shaft provides a proper engine-marine gearbox groupe installation on planing or semi-desplacement, type hulls.

Ratios availables : 1.53 / 2.08 / 2.60

ACCESSORIES

• SAE 3, 4, BW bell housings

• Torsional couplings 10” – 11,5”

• Cable bracket

• Heat exchanger kit

• Trolling valve

• Propeller shaft flange

• Mountin brackets

• Electric control valve
