Description

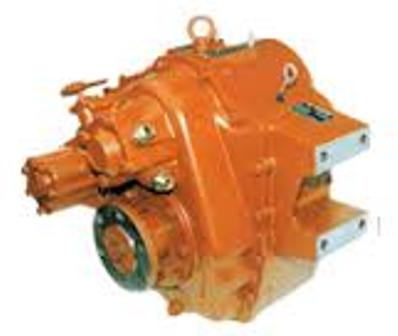

TM 265 A marine gearbox is equipped with multiple-disc clutches hydraulically operated. Clutches and gears are properly constructed to transmit the full power, with the same ratio, both in forward and reverse running. A 7° down angle on output shaft provides a proper engine-marine gearbox groupe installation on planing or semi-desplacement, type hulls.

Ratios Available : 1.44 / 2.09 / 2.30

OPTIONS

• SAE 1, 2, 3 bell housings

• Torsional couplings 11”1/2, 14”

• Cable bracket

• Heat exchanger kit

• Trolling valve

• Propeller shaft flange

• Mountin brackets

• PTO (live)

• Eletric control valve
